• EarMen ST-Amp

    Desktop Fully Balanced DAC / Headphone Amp / Preamp

    • Easy to use
    • Integrated DAC
    • Output power up to 1.85W
    • Fully balanced architecture
    • Ultra low THD and SNR
    • Aluminum chassis
    • Compact design
    • Pre Out Option

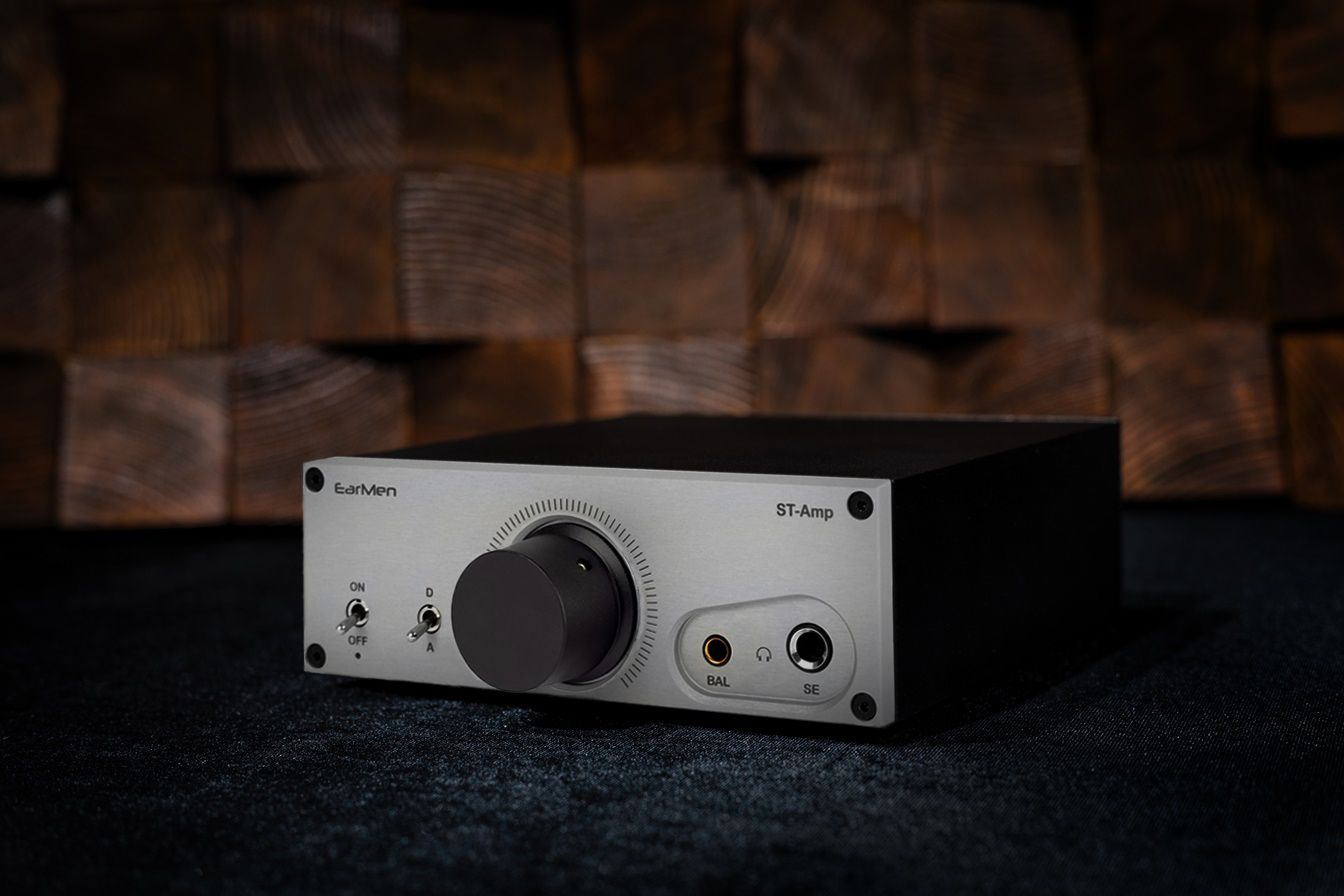

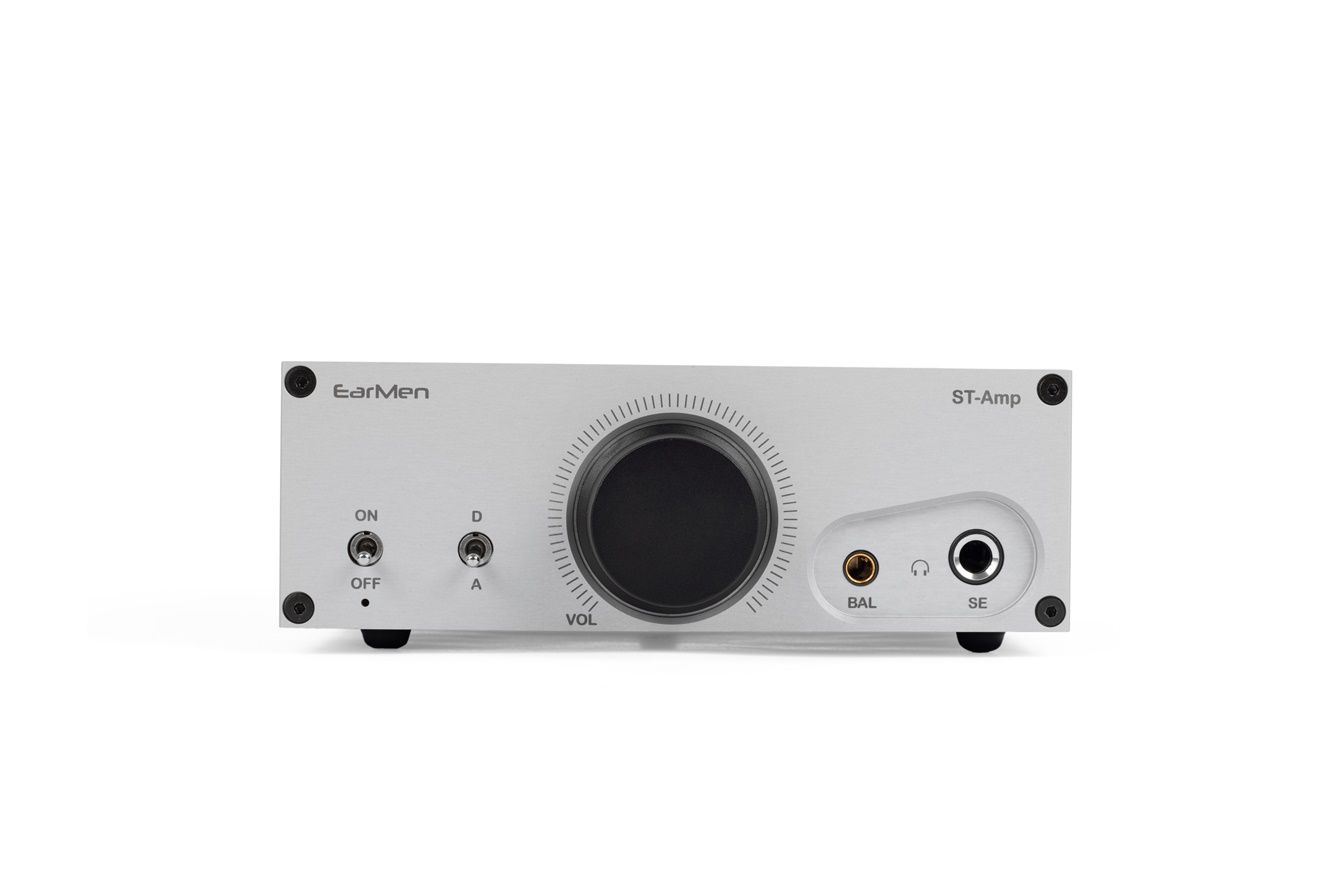

EarMen ST-Amp is a Fully Balanced Desktop Headphone Amplifier with the Pre Amp option and integrated DAC. It has extrodinary sound, whether it is listened to from an integrated DAC or an external, which is great news for all those who want to have everything in one device. The amplifier is carefully made for headphones, so you can not experience unpleasant Pop and Click phenomena when turning it on or off.

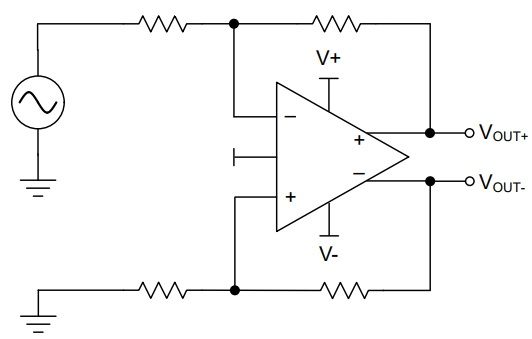

Fully Balanced

The amplifier is fully balanced, so your every sound from the input will become even cleaner and better, but that's not all. We use the exact same topology for SE signals, so they become Balanced in a special way with almost no phase shift, additional noise or THD, which is great news because the sound from the SE output does not lag behind the sound from the Balanced output.

The headphones output are powered by two TPA6120 operational amplifiers, which have proven to be excellent in the audiophile world. To make the experience complete, we use a high-quality balanced ALPS potentiometer that contributes to the sound remaining unchanged, and the user satisfied during use.

Sound

ST-AMP affects the sound so that your DAC can be heard better. Although many DACs have excellent specifications, it is not enough for the sound to fully express itself. ST-AMP fully utilizes the maximum dynamics provided by the sound source, so you will not be deprived of any detail. In addition, it very easily controls various headphone drivers, thus improving accuracy, neutrality and transparency.

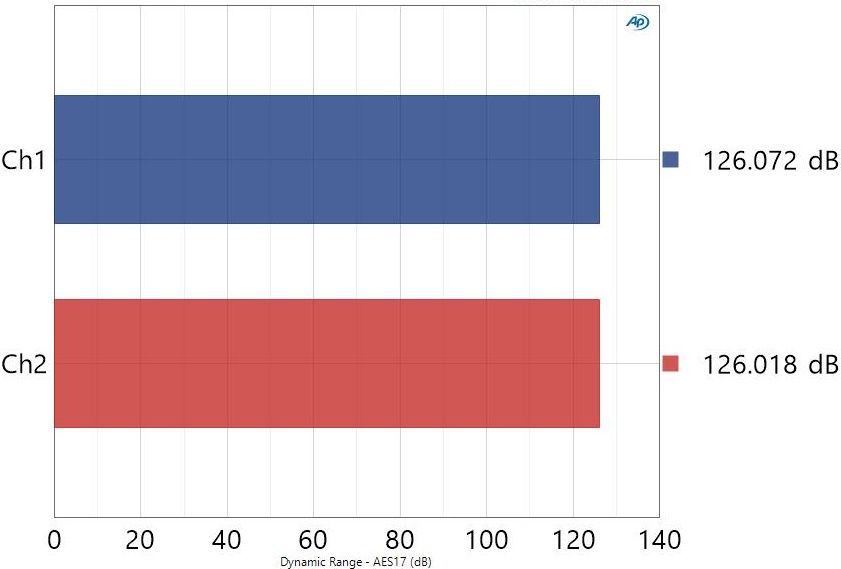

Amazing Dynamics

Dynamic range above >126dB will guarantee you liveliness and musicality that will allow you to never have the feeling that you are missing something. With perfectly balanced sound and incredible dynamics, you will have the feeling of being in a concert hall.

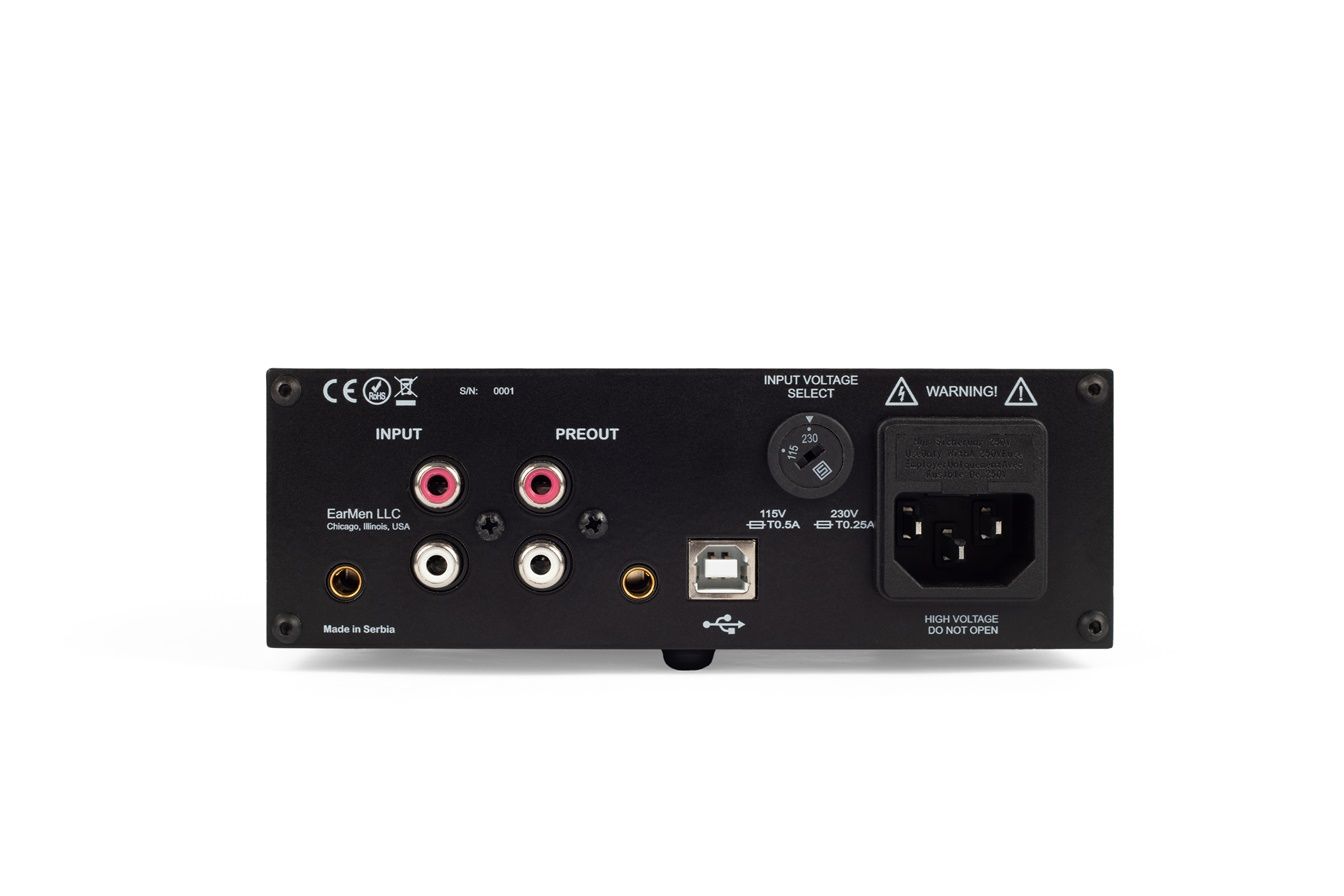

Pre Out Option

On the back panel of the device we have SE and BAL Pre-Out outputs. This option allows the user to use the ST-Amp as a DAC and preamplifier for a much more powerful system.

Source of your choice

The sound source can be chosen according to your choice. Analog input or Digital/Integrated DAC gives you the freedom to listen to your favorite music from any source.

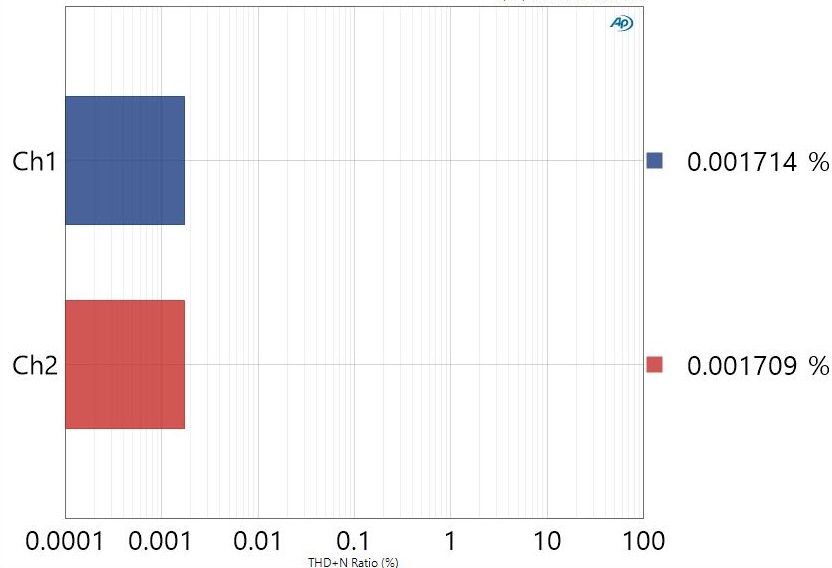

Ultra Low THD

Low Total Harmonic Distortion is such an important feature and as such we take it very seriously. ST-Amp has Very low Total Harmonic Distortion which will allow you higher power factor, lower peak currents, and higher efficiency without distortions





Power Supply

At the heart of the device itself is a noiseless linear power supply with great stability, so it can easily provide enough power even for the most demanding headphones. Apart from the special topology of the amplifier, the power supply is worthy of excellent characteristics even at full power, which is often not the case with most amplifiers, so in their specifications you can find measurements but at half power.

Specification

Inputs RCA Single End Input
  Balanced 4.4 mm Input

Outputs SE 6.35mm
  Balanced 4.4mm

Pre Outputs RCA (SE output)
  Balanced

DAC ES9280

Audio formats
DSD 64 / 128 DoP
DXD 384/352.5 kHz
PCM Up to 384 kHz

Dimensions  170x30x150 mm / 6,69"x1,18"x5,90"
Weight 1100 gr / 2,42lbs



  SE in -SE out SE in - BAL out
Input 2V 2V
Output 4V-0.5W@32 Ohm 7.75V-1.85W@32Ohm
THD+N 0.0025% 0.003%
SNR [A-W] >117dB  >121dB
Dynamic range >117,9dB  >121dB
Freq. response ±0.003dB ±0.007dB



  BAL in - SE out BAL in - BAL out
Input 4V 4V
Output 4V-0.5W@32 Ohm 7.75V-1.85W@32Ohm
THD+N 0.0025% 0.002%
SNR [A-W] >118dB  >125dB
Dynamic range >118dB  >126dB
Freq. response ±0.003dB ±0.006dB
